System Principles
The precondition for the heat treatment of exhaust gas is that the pollutant must be combustible. The mixture of organic and inorganic compounds in the process waste gas is in a state of water vapor, steam, or gas that is oxidized and / or burned. In the process of thermal oxidation, the hydrocarbons contained in the solvent react with oxygen to form water vapor and carbon dioxide.
The exhaust gas is delivered to the heat cleaning furnace by steam pressure . Because the gas containing a large amount of steam is easy to change into liquid state during the transfer process to the furnace, which then clog in the vertical pipe and make problem for the whole process , it is necessary to use heat tracing and preservation in the process pipeline ahead of the equipment, so as to ensure the smooth transmission of the gas in the pipeline.
Design conditions
Medium: gas (water vapor)
Maintain temperature: 110 degrees; maximum exposure temperature: 150 degrees
Minimum ambient temperature: -5 degrees
Pipe Diameter: 150~200mm, thermal insulation material: rock wool insulation thickness: 50mm;
Heat Ratio: 4
Power supply: 220VAC

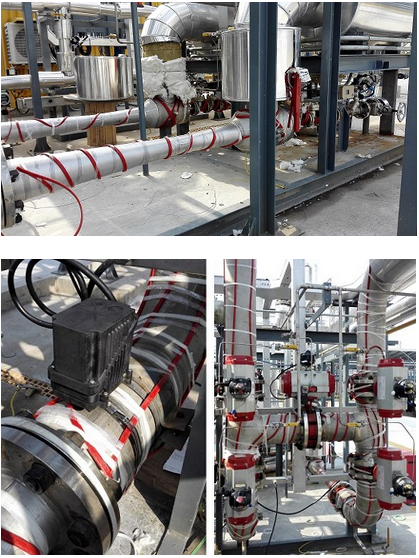

Site Photos
|
